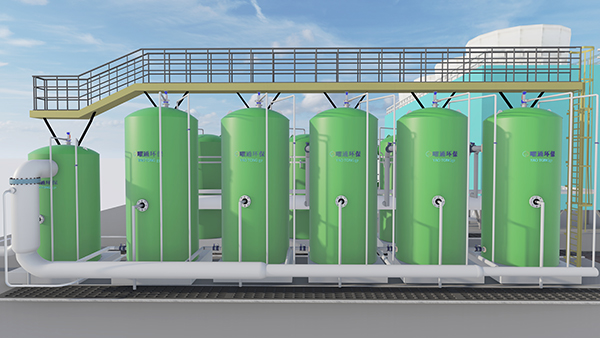

YTCY type turbid ring water purification device is a domestic institutions of higher learning a number of senior engineers jointly with my company''s technical department jointly developed new products, the equipment for steelmaking, steel rolling, continuous casting oil-containing wastewater reuse of thematic research, after more than a few years before the small test, pilot and field field operation, to figure out a set of practical and new technology, the equipment set to deal with oil, iron oxide, suspended solids, pressure on the tower and other functions with a small footprint and good treatment effect, large treatment capacity and degree of automation, the equipment after commissioning does not require manual guarding. This equipment combines the functions of treating oil, iron oxide, suspended solids, keeping pressure on the tower and so on, and covers an area of small, good treatment effect, large treatment capacity and high degree of automation, the equipment does not need artificial care after the commissioning of the qualified.
       YTCY type turbid ring water purification device is to add chemicals, the mixing reaction so that the oil in the water, iron oxide and other suspended solids, through the cohesion, flocculation effect of sedimentation and separation, to achieve the purpose of purifying the water, when the feed water containing oil in the ≤ 50mg / L, the oil in the effluent in the ≤ 15mg / L, when the feed water content of ≤ 500mg / L, the effluent SS ≤ 25mg / L.
       Good dosing effect, low dosage of chemicals, significantly lower operating costs, due to the integrated high-efficiency sewage treatment equipment structure is reasonable and scientific, add chemicals can be fully mixed in the equipment. Flocculation, coagulation effect is good, in the same kind of sewage treatment equipment, our integrated high-efficiency sewage treatment equipment in the water of the insoluble matter is less, the oil removal rate is high. There are two kinds of chemicals to be added, separately, the first one is electrolyte chemicals, put into the first mixing room, the second one is special polymer oil flocculant, put into the second mixing room, put the first one into the first chemicals, then put the second one into the second chemicals. Both agents are non-toxic and harmless agents. The sewage after dosing and passing through the first vortex reaction room and the second mixing room enters the inclined pipe sedimentation, the oil in the water (emulsified oil and emulsified oil) and the suspended matter are coagulated and flocculated by the agent, forming large particles of flocs and settling in the lower sludge discharge hopper, and the upper water is discharged through the overflow weir and the outflow pipe. The dosage of chemicals can be reduced by one-third.
